AOI Systems

Domestic No.1 share desktop model AOI.
Being selected by customer for long time.
Starting sales since 1996, AOI of Marantz Electronics had been sold more than 6,000 units for 50 countries in the world.
We proceed for production which always satisfy the customer. Simple operation and high quality inspection is possible with the feedback to development from production site testing AOI in our group EMS factory in realtime.
  基板外観検査装置

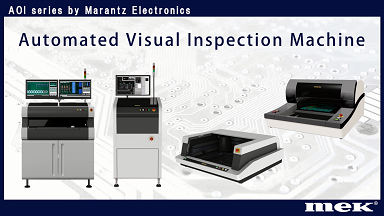

YouTube video
Thum_G_e

Feature 1
Easy maintenance and high quality. (Machine sold in 15 years ago is still used regurly)
Feature 2
Efficiently and appropriately, inspection is possible with the combination of 5 kinds of inspection algorithm. It supports 6 languages including Japanese. It has been used widely in countries all over the world.
Feature 3
Customer can use the function flexibly such as "Alert the false call", "Prevent the defect", and "Sampling".

X02WB

X02WB
3D Desktop AOI
Full 3D inspection machine that enables solder volume inspection and pin length measurement inspection.
Model type: Offline

Go to detail

D series

Dシリーズ
Parallel inpection AOI
Inspect A side and B side in parallel.
Suitable for PCB with SMT components and DIP components.
Latest model integrating G series and B series.
Model type: Inline

Go to detail

J series

G series
Standard model equipped with a 5M camera
The minor changed J series is equipped with a 5M camera and secures a wide field of view of 2400 x 2000 pixels.
Model type: Inline/Desktop

Go to detail

V series

Vシリーズ
Same performance with lower price
Same performance with high spec. model, V series is the model with lower price. Simple hardware configuration with adopting white lighting and macro lens.
Model type: Desktop

Go to detail

B series, T series


Bottom inspection beyond previous method
Automation of solder fillet inspection is possible.
Machine has feature for improving quality assurance level of soldering, decrease the influence of solder flux to optical unit, and improving the areal productivity by simple product line.
Model type: Inline (B series) / Desktop (T series)

Go to detail

Software for 22X


Operating software for all Mek AOI
The operation software to utilize the function of the inspection machine to the maximum is equipped as standard in AOI.
Easy operation, and can use latest inspection technology with templates containing various inspection condition.


Go to detail
