J series

J series which mounted 5M
pixel camera as standard

Minor model change from G series,
released J series which mounted 5M pixel camera as standard. Expand the field of view, and secure a wide field of view of 2400 x 2000 pixel.

Height measurement by laser is now possible
on some models.

(Left：U22XJ-350LH Upper:M22XJ-350 Bottom：U22XJ-350 )

Features

Wide view field

By installing a 5M camera, a field of view area of 2400 x 2000 pix is secured.

Height measurement by Laser to Detect the Floating parts

Maximum measurable Height ： 70mm ／ Accuracy ： ±50μm

Detects floating	Goog product	Floating Defective

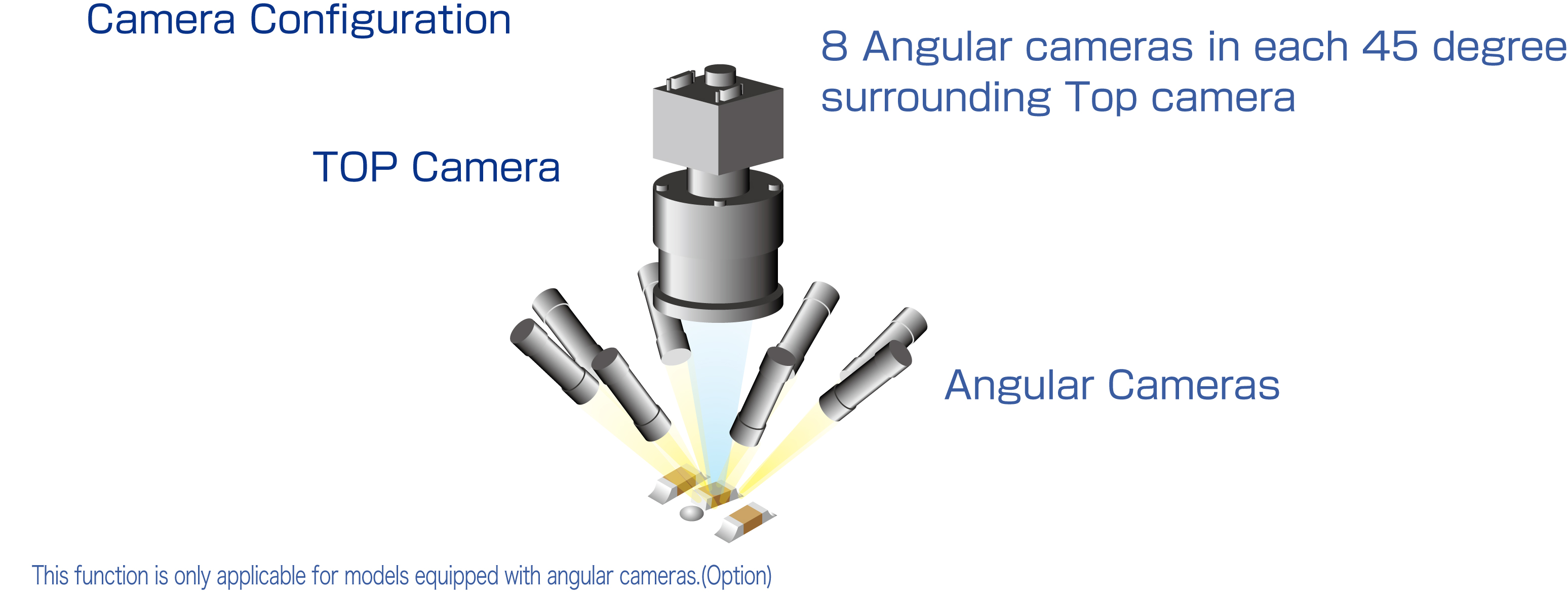

Angular Cameras

【Beyond 2D】
8 angular camera views

Highly accurate inspection of small chips, lifted lead, solder of QFJ pakage component using the picture from angular cameras.
Inspection by the optical picture from 8 angular cameras in each 45 degree, won't affect nearby tall component.
Show defective components in angular camera views, no need of microscope.

Switching only by a button

TOP camera + Angular cameras from 3 different angles

TOP camera + Angular cameras from 8 angles

Z axis function

No influence by height difference
Z axis which lifts up and down the camera

Best focus for reading the text of high components by lifting up and down the camera.
Possible to inspect sub PCB mounted on main PCB simultaneusly.
Support the variation of PCB thickness.

Text of the electrolytic capacitor

Text of the relay

Polarity of the connector

Specification

Model Name	M22XJ-350H (Desktop)	U22XJ-350 (Desktop)	U22XJ-650 (Desktop)	U22J-350LH (Inline)	U22J-650LH (Inline)
Extrenal Dimension (mm)	W:736 D:874 H:493	W:760 D:816 H:558	W:1087 D:1145 H:577	W:770 D:846 H:1300^*3	W:1070 D:1106 H:1330^*3
Net weight	65kg	80kg	150kg	180kg	280kg
Max. PCB size (mm)	350 x 250	350 x 250	650 x 550	350 x 250	650 x 550
Clearance ^*1	TOP : 40 mm Bottom : 70 mm			TOP : 40 mm Bottom : 30 mm
Camera	5M
Lens	Telecentric lens
Lighting sysytem	DL type or ML type
Field of View (mm)	36 x 30 ( 15µm )
Angular Camera^*2FoV Approx.: 6 x 6 mm Resolution: 13 µm	Optional
Z axis Stroke 30mm (+28mm, -2mm)	Ο	Optional		Ο	Ο
Laser measurement	Ο	-	-	Ο	Ο
Power consumption	350W ( Include PC )
Power supply	AC100V - 240V
Position repeatability	< ±0.03 mm			< ±0.05 mm
Conveyer Speed	-			10-500 mm/sec
Inspection Speed	Approx.　0.3　sec/point (Depends on PCB type)
1 Top clearance 30mm for RGB lighting 2 Top clearance 30mm with angular cameras *3 Height will be 1800mm when warning tower light included.

Please note that above specification is subject to change without notice.
Please be sure to confirm the updated specification at the time of purchase.
